LARGE SOLIDS HANDLING
Sigma GFHU 80
channel impeller pumps for 60 x 50mm solids handling slurry/sewage type applications. Cast iron construction with 80mm discharge. 400V with 3kW motors, these pumps are available for freestanding, dry well and guiderail installations. Heads to 14m and flows to 1500 l/m.Maxi HE
vortex impeller pumps for 64mm solids handling applications. Cast iron construction with DN80 PN10 discharge. 400V with 3.2kW Class H motors, these pumps are available for freestanding, dry well and guiderail installations. Heads to 10m and flows to 27 l/s. Eex d IIB T4 option.Maxi HN
single channel impeller pumps for 65mm solids handling applications. Cast iron construction with DN80 PN10 discharge. 230/400V with 1.2 and 1.6kW Class H motors respectively, these pumps are available for freestanding and guiderail installations. Heads to 8m and flows to 17.5 l/s. Eex d IIB T4 options.Semisom 650L
vortex impeller pumps for 65mm solids handling applications. Cast iron/Stainless construction for guiderail installations only. Guiderail stool discharge is 2½" BSPF/Flange. Available in 230/400V with 1.5kW motors, the pumps handle Heads to 8.5m and flows to 600 l/m.Semisom Series 65

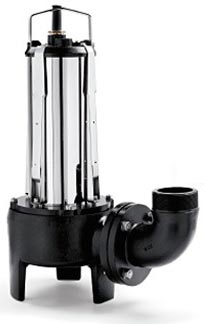

vortex and channel impeller pumps for 65mm solids handling applications. Cast iron/Stainless construction with 3" BSPM discharge. The smallest model available in 230/400V, all other models 400V only. The range offers Heads to 19m and flows to 1500 l/m. Guiderail options.Hippo 65 Series
vortex impeller pumps for 2½" solids handling applications. Cast iron/Stainless construction with DN65 discharge flange. Available in 230V Auto or Manual, they have 1.1 or 1.5kW motors offering Heads to 13m and flows to 600 l/m. Guiderail options.Hippo 80 Series

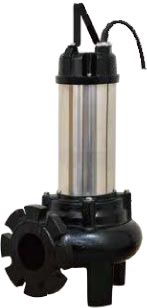

vortex impeller pumps for 3" solids handling applications. Cast iron/Stainless construction with DN80 discharge flange. Available in 230V Auto or Manual, they have 1.1 or 1.5kW motors offering Heads to 10.3m and flows to 840 l/m. Guiderail options.Sigma GFHU 100

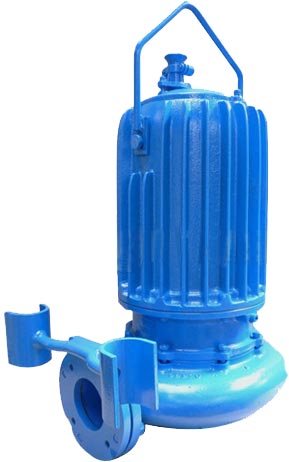

channel impeller pumps for 60 x 70mm solids handling slurry/sewage type applications. Cast iron construction with 100mm discharge. 400V with 6.5kW motors, these pumps are available for freestanding, dry well and guiderail installations. Heads to 26m and flows to 3000 l/m.Semisom Series 80

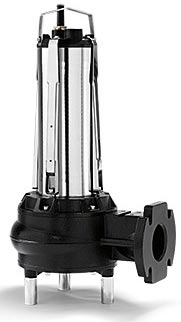

heavy duty vortex impeller pumps for 74mm solids handling applications. Cast iron/Stainless construction with DN80 discharge. Available in 400V with motor sizes from 2.6 to 7.5kW, the five models in the range offer Heads to 24m and flows to 2000 l/m. Guiderail options.Maxi HC
heavy duty single channel impeller pump for 76mm solids handling applications. Cast iron construction with DN80-PN10 discharge. Available in 400V with 2.8kW Class H motor, it offers Heads to 13m and flows to 28 l/s. Guiderail and Eex d IIB T4 options.Maxi HON
heavy duty single channel impeller pump for 78mm solids handling applications. Cast iron construction with DN100-PN10 discharge. Available in 400V with 3.8kW Class H motor, it has built-in thermal protection and humidity probe. Heads to 15m and flows to 52 l/s. Guiderail option.Maxi HRNN
heavy duty single channel impeller pump for 78mm solids handling applications. Cast iron construction with DN100-PN10 discharge. Available in 400V with 5.1kW Class H motor, it has built-in thermal protection and humidity probe. Heads to 15m and flows to 52 l/s. Guiderail, Dry Well and ATEX options.Maxi HG
heavy duty double channel impeller pump for 80mm solids handling applications. Cast iron construction with DN100-PN10 discharge. Available in 400V with 2.8kW Class H motor, it has built-in thermal protection and humidity probe. Heads to 8.7m and flows to 55 l/s. Guiderail and ATEX options.Maxi HK
heavy duty single channel impeller pump for 90mm solids handling applications. Cast iron construction with DN100-PN10 discharge. Available in 400V with 3.8kW Class H motor, it has built-in thermal protection and humidity probe. Heads to 11.5m and flows to 50 l/s. Guiderail and ATEX options.Maxi HX
heavy duty 6-pole channel impeller pump for 80mm solids handling applications. Cast iron construction with DN150-PN10 discharge. Available in 400V with 6.0kW Class H motor, it has built-in thermal protection and humidity probe. Heads to 12.5m and flows to 97 l/s. Guiderail and ATEX options.
