BOREHOLE AND MOTORS

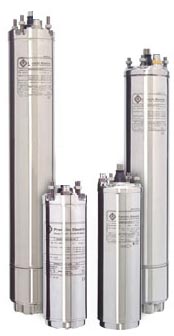

Franklin Motors
A range high quality 4" motors for borehole pump applications. 230V up to 2.2kW c/w starter panels. 400V from 0.55 to 5.5kW. Also a selection of cable materials such as EPR, H07RN-F and H07BQ-F with Franklin plugs, in lengths from 1.5m to 90m.Sigma EVFU 3" Helical Rotor Borehole Pump
Progressive cavity borehole pumps designed for clean or dirty water with entrained solids up to a max. 3mm diameter. EPDM stator and stainless steel rotor. 400V with 0.75kW Sumoto motor and 35m H07RN-F cable as standard. Heads to 80m and flows to 35 l/m.Sigma EVFU 4" Helical Rotor Borehole Pump

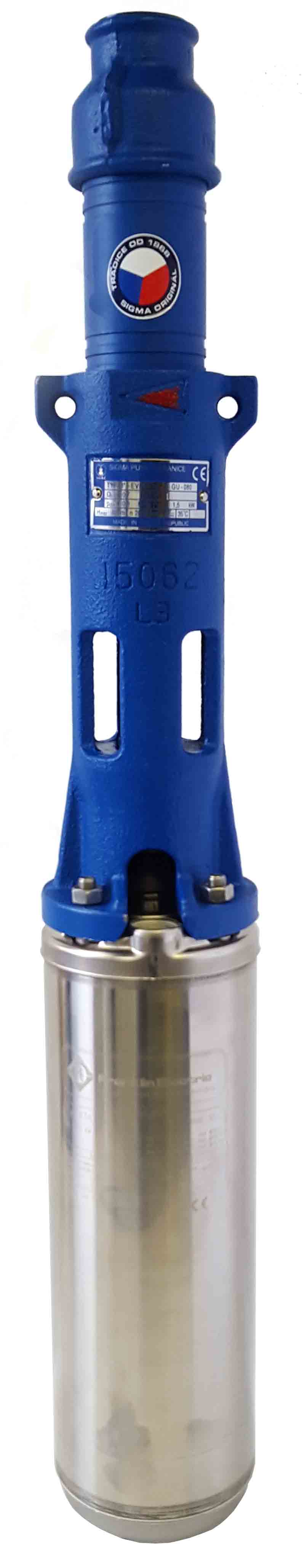

Progressive cavity borehole pumps with 1" BSP discharge. Designed for clean or dirty water with entrained solids up to a max. 5mm diameter. EPDM stator as standard with stainless steel rotor. 230/400V Franklin motors and choice of cable materials and lengths. Heads to 80m and flows to 54 l/m.Sigma EVFU 4" Helical Rotor Borehole Pump
Progressive cavity borehole pumps with 1¼" BSP discharge. Designed for clean or dirty water with entrained solids up to a max. 8mm diameter. EPDM stator as standard with stainless steel rotor. 400V Franklin motors and choice of cable materials and lengths. Heads to 60m and flows to 92 l/m.Idrosom Series 60 4" Borehole Pumps

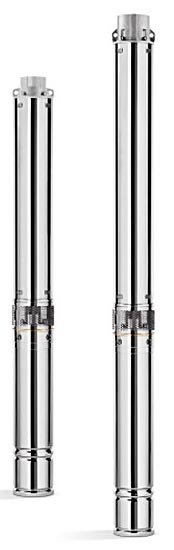

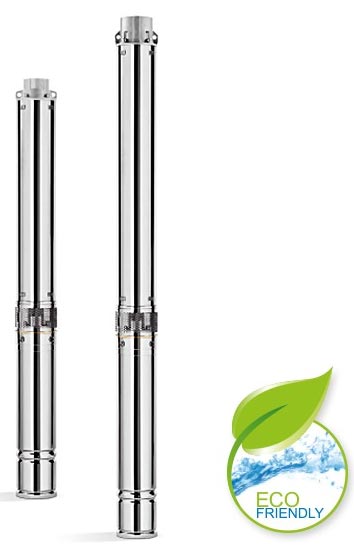

Multistage borehole pumps with 1½" BSP discharge. Designed for clean water applications. Stainless steel construction with Noryl® impellers. Choice of six models with 230/400V ‘Eco-Friendly’ motors from 0.37 to 2.2kW. Heads to 255m and flows to 60 l/m.Idrosom Series 100 4" Borehole Pumps
Multistage borehole pumps with 1½" BSP discharge. Designed for clean water applications. Stainless steel construction with Noryl® impellers. Choice of five 230V models and seven 400V models with ‘Eco-Friendly’ motors from 0.55 to 4.0kW. Heads to 295m and flows to 100 l/m.Idrosom Series 180 4" Borehole Pumps
Multistage borehole pumps with 2" BSP discharge. Designed for clean water applications. Stainless steel construction with Noryl® impellers. Choice of four 230V models and seven 400V models with motors from 0.75 to 5.0kW. Heads to 220m and flows to 180 l/m.Idrosom Series 250 4" Borehole Pumps
Multistage borehole pumps with 2" BSP discharge. Designed for clean water applications. Stainless steel construction with Noryl® impellers. Choice of three 230V models and seven 400V models with motors from 1.1 to 7.5kW. Heads to 235m and flows to 250 l/m.BBC Series 420 4" Borehole Pumps
Multistage borehole pumps with 2" BSP discharge. Designed for clean water applications. Stainless construction with impellers and diffusers in non-toxic polycarbonate. Choice of two 230V models and seven 400V models with motors from 1.5 to 7.5kW. Heads to 160m and flows to 400 l/m.BBC SRT Dirty Water 6" Borehole Pumps

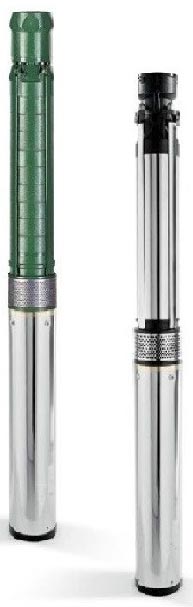

Multistage borehole pumps with 2" BSP discharge, designed for dirty water applications with entrained solids up to 5mm dia. Stainless construction with impellers and diffusers in Noryl®. 400V models with motors from 3.0 to 4.0kW. Heads to 65m and flows to 500 l/m.BBC 6" Borehole Pumps

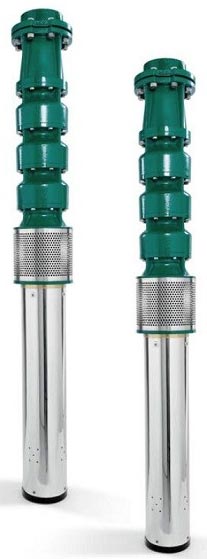

An extensive range of multistage borehole pumps with 2" or 3" BSP discharge, designed for clean water applications. Impellers and diffusers in polycarbonate. Over 60 models in the range have coolant or water filled motors from 1.5 to 30.0kW. Heads to 400m and flows to 1000 l/m.BBC 8" and 10" Borehole Pumps
An extensive range of multistage borehole pumps with 5" or 6" BSP discharge, designed for clean water applications. Head, suction body, impellers and diffusers in EN GJL-200 cast iron. 70 models in the range have motors from 5.5 to 55.0kW. Heads to 240m and flows to 6000 l/m.
